Solution:

Export a CAD file from Fusion 360, or download a file from a Fusion project site (A360).

Export from Fusion 360

1. In Fusion 360, choose File > Export.
2. In the Export dialog box, for Type, specify the file type.

Note: Some file types require cloud translation, which can take some extra time.

List of file types which can be exported from Fusion 360:

• Autodesk Fusion 360 Archive Files (*.f3d)
• Autodesk Inventor 2018 Files (*.ipt)
• DWG Files (*.dwg)
• DXF Files (*.dxf)
• FBX Files (*.fbx)
• IGES Files (*.igs *.iges)
• OBJ Files (*.obj)
• SAT Files (*.sat)
• SketchUp Files (*.skp)
• SMT Files (*.smt)
• STEP Files (*.stp *.step)
• STL Files (*.stl)

If the Fusion Archive File option is unavailable when you export the file, the model is a distributed design that contains XREFs. For details see, No option to export a .f3d or .f3z local archive file from Fusion 360.

For details on how to export bodies and components as an STL file, see How to export an STL file from Fusion 360.

For details on how to export a designs as DXF and DWG files, see How to export a Fusion 360 design to a DWG or DXF file.


Export from your project site (A360)

1. Sign in to myhub.autodesk360.com or your team site.
2. Open your project and locate your Fusion design.

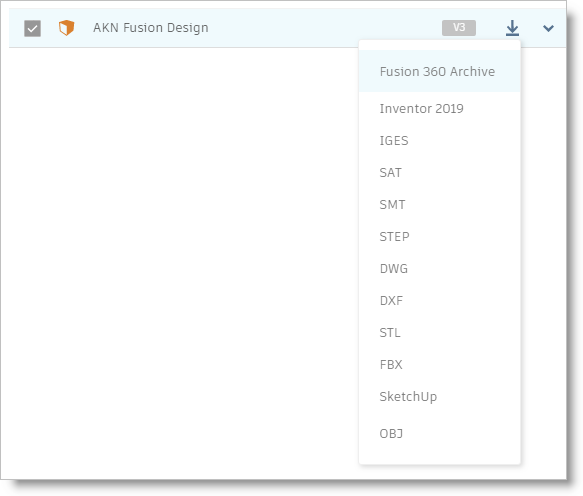

3. Click the Export icon for your design. (You must hover over the item for the icon to appear.)
